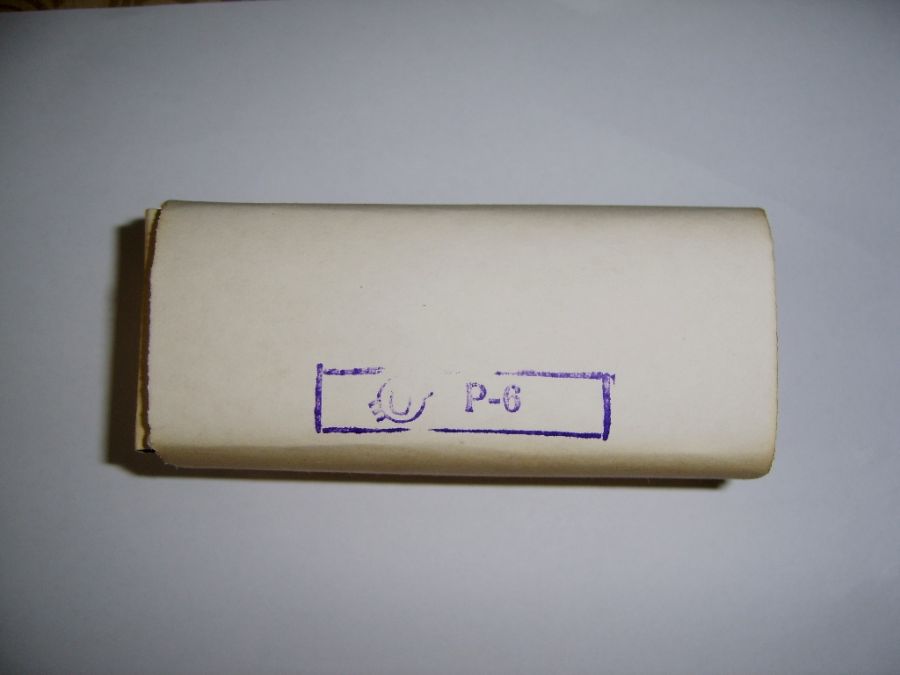

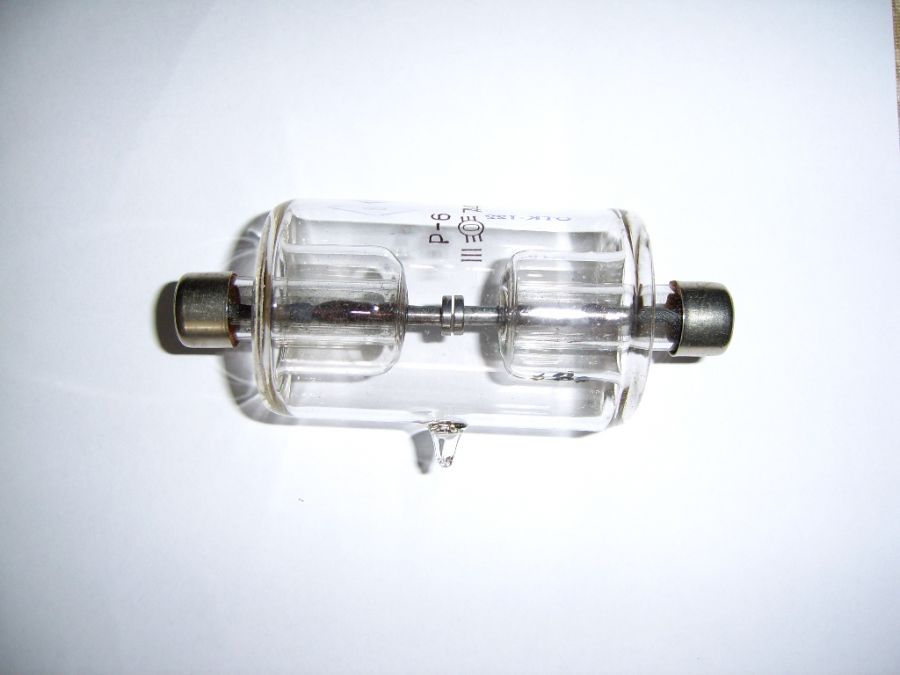

R-6
Discharge Lamp
Static breakdown voltage 800 Veff
Capacity < 2.5 pF
Insulation Resistance > 100 Mohm
Recovery Time Discharge Gap Resistance < 40 mks
Average power < 1.4 kW
Pulse power < 650 kW
Max Frequency 200 MHz
Size Ф45 x 55 x 110 mm
- Code: S121037
- Manufacturer: USSR
- Weight: 0.100 Kgs
|
R-18R-18 Discharge Lamp
Price:
€2.00
|
|
R-4R-4
Discharger.
Price:
€1.00
|
|
R-35R-35 Discharge Lamp
Static Breakdown Voltage 320 to 380 Va Discharge Current. 15 Aa Discharge Pulce Current. 2500 A Discharge Duration at Current 15 A 5 s Discharge Duration at Current 2500 A 60 uS Working Temperature -60 to +85 C
Price:
€2.00
|
|
RB-2RB-2 Discharge Lamp
Price:
€2.00
|
|
RB-3 BRB-3 B Discharge Lamp
Static Breakdown Voltage: - Group "A" 220 to 235 V - Group "B" 236 to 250 V - Group "V" 251 to 265 V Insulation Resistance > 100 Mohm Discharge Frequency 2 to 5 Hz Ambient Temperature -60 to +100 C
Price:
€2.00
|
|
R-34R-34 Discharge Lamp
Static breakdown voltage 700 to 1300 V Capacity < 5 pF Insulation Resistance > 100 Mohm Poulce Discharge Currant < 1000 A Size Ф22.5 x 52 mm
Price:
€3.00
|
|
RB-5RB-5 Discharge Tube
Price:
€4.00
|
