Description

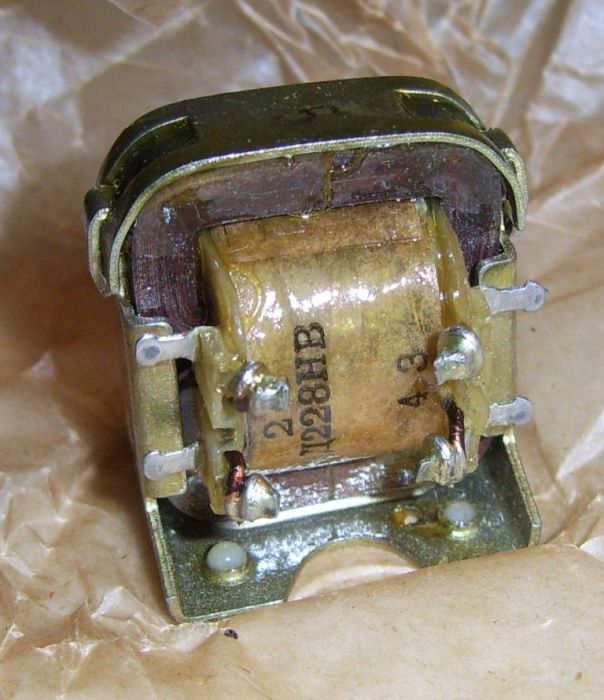

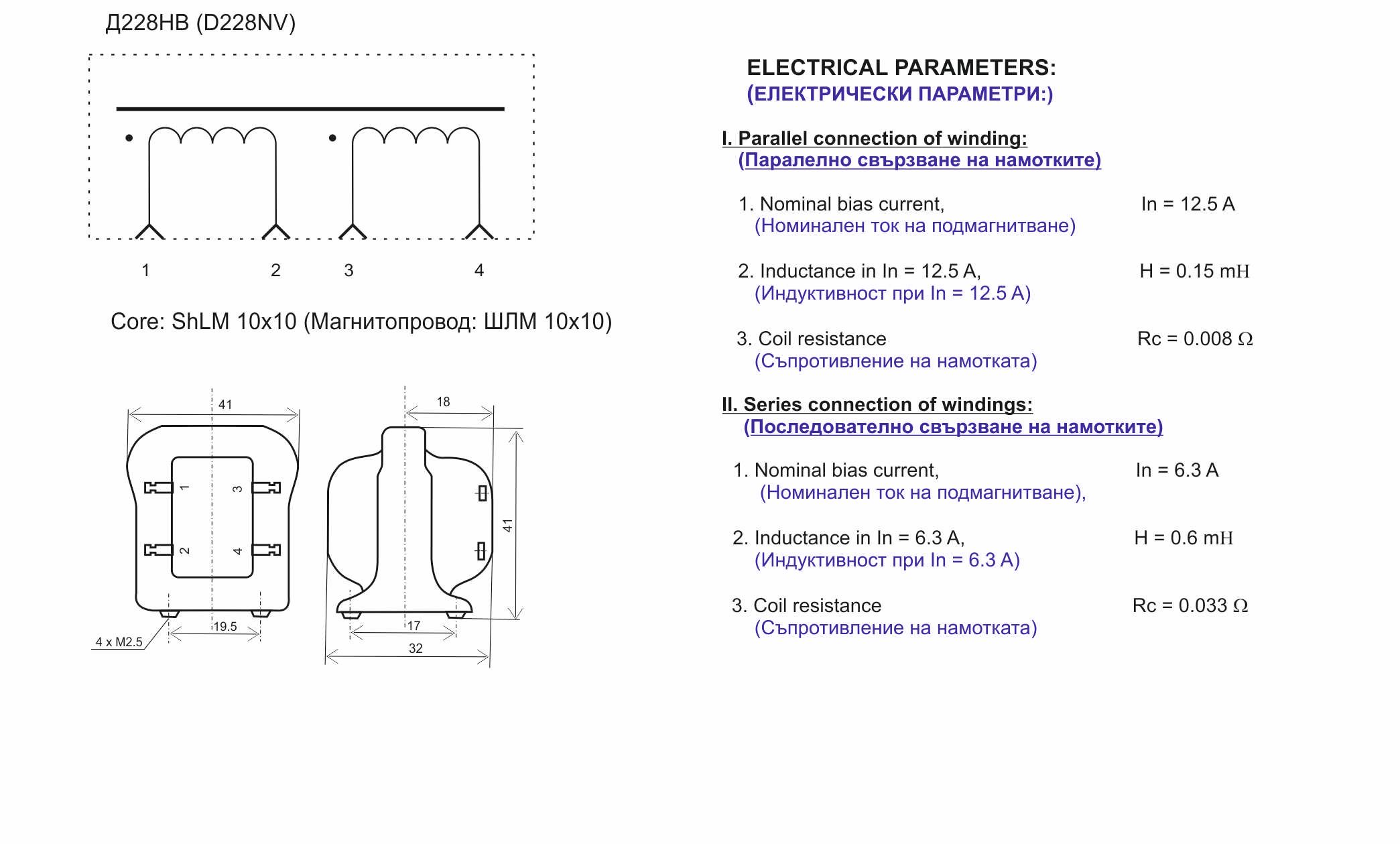

D228NV
Low-frequency Filter Choke. Used in the Power Supply of various Electronic Equipments.
Operating Frequency - 50 to 5000 Hz.
Insulation resistance between windings and the core:
- Under normal conditions - 10 000 MOhm.
- At high temperature (+85 ° C) - 20 MOhm.
- With high humidity (98% long-term) - 2 MOhm.
- With high humidity (98% short) - 20 MOhm.
- Code: S121066
- Manufacturer: USSR
- Weight: 0.134 Kgs
|
D203NVD203NV Low-frequency Filter Choke. Used in the Power Supply of various Electronic Equipments. Operating Frequency - 50 to 5000 Hz.
Insulation resistance between windings and the core:
- Under normal conditions - 10 000 MOhm.
- At high temperature (+85 ° C) - 20 MOhm.
- With high humidity (98% long-term) - 2 MOhm.
- With high humidity (98% short) - 20 MOhm.
Price:
€2.00
|
|
D203VD203V Low-frequency Filter Choke. Used in the Power Supply of various Electronic Equipments. Operating Frequency - 50 to 5000 Hz. Insulation resistance between windings and the core:
- Under normal conditions - 10 000 MOhm.
- At high temperature (+85 ° C) - 20 MOhm.
- With high humidity (98% long-term) - 2 MOhm.
- With high humidity (98% short) - 20 MOhm.
Price:
€2.00
|
|
D221NVD221NV Low-frequency Filter Choke. Used in the Power Supply of various Electronic Equipments. Operating Frequency - 50 to 5000 Hz. Insulation resistance between windings and the core: - Under normal conditions - 10 000 MOhm.
- At high temperature (+85 ° C) - 20 MOhm.
- With high humidity (98% long-term) - 2 MOhm.
- With high humidity (98% short) - 20 MOhm.
Price:
€2.50
|
