Description

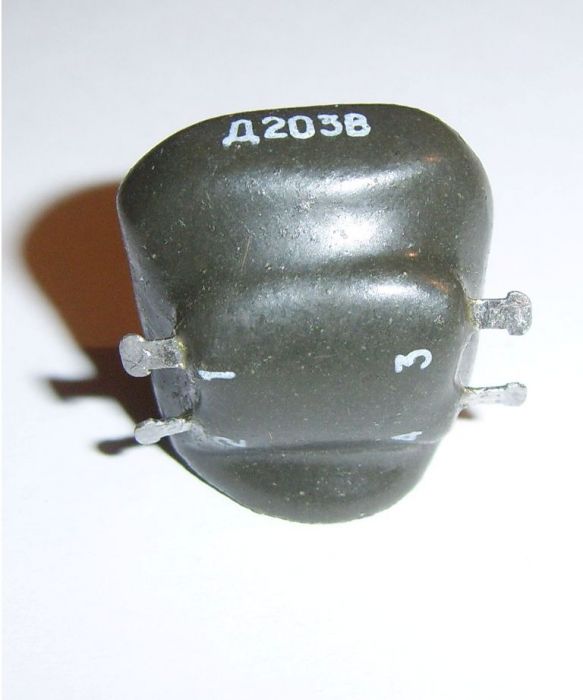

D203V
Low-frequency Filter Choke. Used in the Power Supply of various Electronic Equipments.
Operating Frequency - 50 to 5000 Hz.
Insulation resistance between windings and the core:
- Under normal conditions - 10 000 MOhm.
- At high temperature (+85 ° C) - 20 MOhm.
- With high humidity (98% long-term) - 2 MOhm.
- With high humidity (98% short) - 20 MOhm.
- Code: S121064
- Manufacturer: USSR
- Weight: 0.040 Kgs
|
D228NVD228NV Low-frequency Filter Choke. Used in the Power Supply of various Electronic Equipments. Operating Frequency - 50 to 5000 Hz. Insulation resistance between windings and the core: - Under normal conditions - 10 000 MOhm.
- At high temperature (+85 ° C) - 20 MOhm.
- With high humidity (98% long-term) - 2 MOhm.
- With high humidity (98% short) - 20 MOhm.
Price:
€3.00
|
